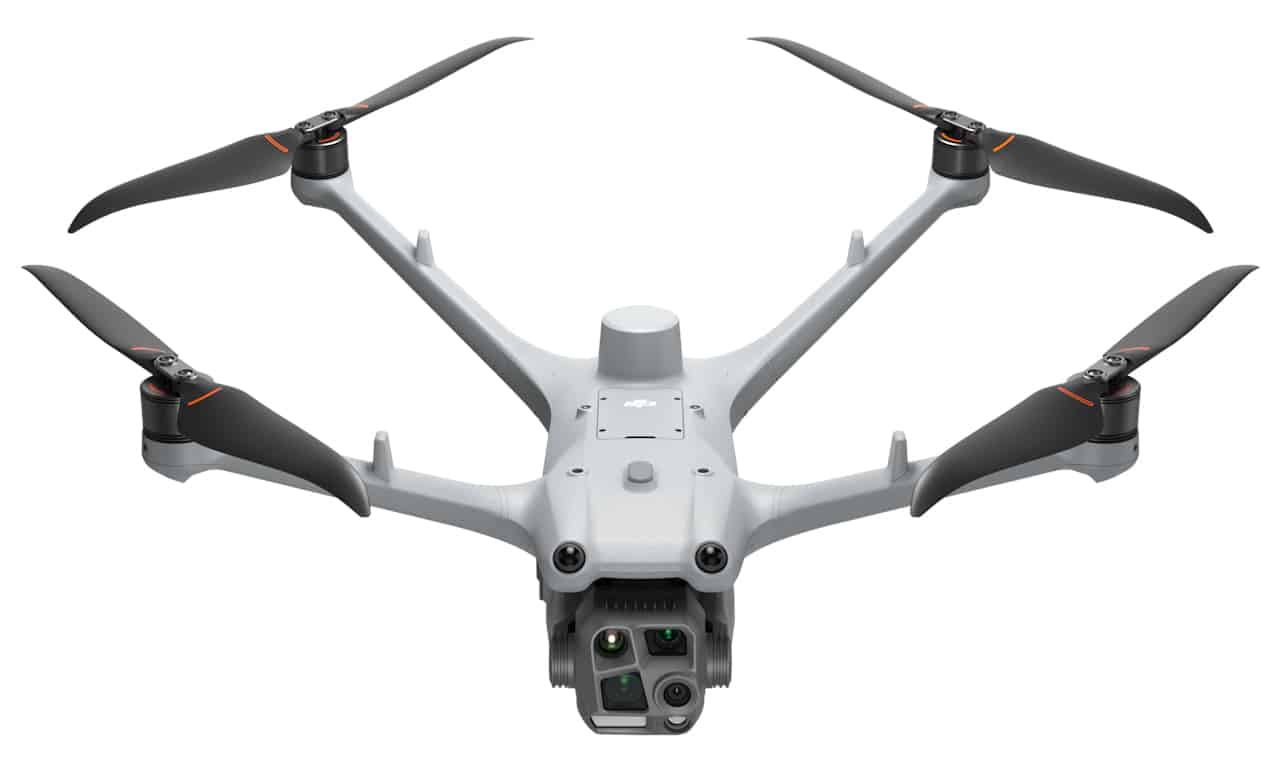

DJI Matrice 4TD

The DJI Matrice 4TD is a powerful, adaptable enterprise drone designed for whatever your mission throws at it. Whether you’re mapping large areas of land, inspecting power lines, or keeping an eye on a sprawling industrial site, this drone has you covered. With its multi-sensors, high-resolution cameras, and ability to fly in tough conditions, the Matrice 4TD lets you gather all the information you need safely, efficiently, and accurately — without putting people at risk.

From agricultural surveys to search-and-rescue operations, the Matrice 4TD shines in a range of scenarios. It’s a tool you can rely on when time is tight and conditions are tough. With its sophisticated imaging capabilities and strong flight performance, this drone makes sure you’re always seeing the big picture — whether you’re up close or a mile away. Whatever your mission, the Matrice 4TD is designed to be a powerful, flexible platform for all your enterprise needs.

Drone Highlights

Obstacle Sensing for Safe Operation
Unmatched Clarity and Precision
Excels in Low-Light Environments

Featured Specs

The DJI Matrice 4TD is a sophisticated enterprise-grade drone designed to handle a range of specialized missions. It features a main wide camera with 48 MP resolution, a medium telephoto camera with 48 MP resolution, and a powerful telephoto sensor with a 168 mm equivalent focal length — perfect for high-resolution, long-distance imaging. The Matrice 4TD’s sensors are backed by a 1/1.3-inch CMOS for the wide and medium telephoto, and a 1/1.5-inch CMOS for the telephoto, delivering clear, detailed footage across a range of applications.

The Matrice 4TD also offers strong flight capabilities and adaptability. It has a maximum control range of nearly 9.32 miles under FCC conditions and a maximum flight time of about 50 minutes, allowing it to cover extensive areas efficiently. It supports advanced video transmission for real-time view back to the controller and multi-sensors for obstacle avoidance, making it a powerful tool for mapping, surveillance, and industrial operations — all while delivering reliable and stable performance in challenging conditions.

Precision surveying
5-direction oblique photography function, 3-direction orthophoto photography, and real-time terrain following.
Maximum flight time
50 minutes
Maximum control range
9.32 miles under FCC conditions
Maximum hovering time
47 minutes
Operating temparature
-22° to 122° F
Infrared thermal camera
Supports UHR Infrared Image mode and a High-Res mode for detailed temperature readings.

Drone Specs

Aircraft

Takeoff Weight (with propellers)

4 lbs

Max Takeoff Weight

406 lbs

Dimensions

1.24×1.37×0.7 ft (L×W×H, without propellers)

Wheelbase

Diagonal Wheelbase: 1.64 ft

Max Ascent Speed

19.7 ft/s (N Mode)
32.8 ft/s (S Mode)

Max Descent Speed

19.7 ft/s (N Mode)
26.25 ft/s (S Mode)

Max Horizontal Speed (at sea level, no wind)

Normal Mode, With Obstacle Sensing Enabled: 49.2 ft/s flying forward, 39.4 ft/s flying backward, 32.8 ft/s flying sideways
Sport Mode: 68.9 ft/s flying forward, 62.6 ft/s flying backward, 49.2 ft/s flying sideways

* When used with DJI Dock, only Normal mode is supported.

Max Wind Speed Resistance

During Operation: 39.3 ft/s
During Takeoff/Landing: 39.3 ft/s

Max Takeoff Altitude

21,325.5 ft

Operating Temperature

-4° to 122° F

Ingress Protection Rating

IP55

Max Flight Time (without wind)

54 minutes

Max Hover Time (without wind)

47 minutes

GNSS

GPS + BeiDou + Galileo + QZSS + GLONASS (QZSS and GLONASS are supported only when the RTK module is enabled.)

RTK Module

Built-in, no installation required.

Cellular Dongle 2 Compartment

Yes

AI

AI Detection

Yes

Wide-Angle Camera

Image Sensor

1/1.3-inch CMOS, Effective Pixels: 48 MP

Lens

FOV: 82°
Equivalent Focal Length: 24 mm
Aperture: f/1.7
Focus: 3.3 ft to ∞

Night Scene Mode

Full-Color Night Scene

ISO Range

100-25600
Night Scene Mode: 100-409600

Shutter Speed

Electronic Shutter: 2-1/8000 s

Max Photo Size

8064×6048

Still Photography Modes

Single: 12 MP/48 MP
Timed: 12 MP/48 MP (JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s*)
* 0.7 and 1-second intervals not supported for 48MP photos.
Smart Capture: 12 MP
Panorama: 12 MP (raw image); 100 MP (stitched image)

Minimum Photo Interval

0.7 s

Video Codec and Resolution

H.264, H.265
4K: 3840×2160@30fps
FHD: 1920×1080@30fps

Photo Format

JPEG

Video Format

MP4 (MPEG-4 AVC/H.264)

Medium Tele Camera

Image Sensor

1/1.3-inch CMOS, Effective Pixels: 48 MP

Lens

FOV: 35°
Equivalent Focal Length: 2.75 in
Aperture: f/2.8
Focus: 9.8 ft to ∞

Night Scene Mode

Full-Color Night Scene

ISO Range

100-25600
Night Scene Mode: 100-409600

Shutter Speed

Electronic Shutter: 2-1/8000 s

Max Photo Size

8064×6048

Still Photography Modes

Single: 12 MP/48 MP
Timed: 12 MP/48 MP
JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
Smart Capture: 12 MP

Video Codec and Resolution

H.264, H.265
4K: 3840×2160@30fps
FHD: 1920×1080@30fps

Photo Format

JPEG

Video Format

MP4 (MPEG-4 AVC/H.264)

Tele Camera

Image Sensor

1/1.5-inch CMOS, Effective Pixels: 48 MP

Lens

FOV: 15°
Equivalent Focal Length: 6.6 in
Aperture: f/2.8
Focus: 9.8 ft to ∞

Night Scene Mode

Full-Color Night Scene
Black-and-White Night Scene

ISO Range

100-25600
Night Scene Mode: 100-819200

Shutter Speed

Electronic Shutter: 2-1/8000 s

Max Photo Size

8192×6144

Still Photography Modes

Single: 12 MP/48 MP
Timed: 12 MP/48 MP
JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
Smart Capture: 12 MP

Video Codec and Resolution

H.264, H.265
4K: 3840×2160@30fps
FHD: 1920×1080@30fps

Photo Format

JPEG

Video Format

MP4 (MPEG-4 AVC/H.264)

Digital Zoom

16x (112x hybrid zoom)

Infrared Thermal Camera

Sensor Type

Uncooled VOx Microbolometer

Pixel Pitch

12 μm

Frame Rate

30 Hz

Lens

DFOV: 45°
Equivalent Focal Length: 2.1 in
Aperture: f/1.0
Focus: 16.4 ft to ∞

Temperature Measurement Method

Spot Measurement, Area Measurement

Temperature Measurement Range

High Gain Mode: -4° to 302° F
Low Gain Mode: 32° to 1022° F

Palette

White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2

Photo Format

JPEG (8-bit), R-JPEG (16-bit)

Video Resolution

1280×1024@30fps (UHR Infrared Image function enabled, Night Scene mode not enabled)
640×512@30fps

Video Bitrate

6.5Mbps (H.264 640×512@30fps)
5Mbps (H.265 640×512@30fps)
12Mbps (H.264 1280×1024@30fps)
8Mbps (H.265 1280×1024@30fps)

Video Format

MP4 (MPEG-4 AVC/H.264)

Still Photography Modes

Single: 1280×1024/640×512
Timed: 1280×1024/640×512, JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s

Digital Zoom

28×

Infrared Wavelength

8-14 μm

Infrared Temperature Measurement Accuracy

±2° C or ±2% (whichever is greater)

NIR Auxiliary Light

Infrared Illumination

FOV: 5.7°±0.3°

Laser Module

Laser Rangefinding

Normal Incidence Range: 5905.5 ft (1 Hz)

Oblique Incidence Range (1:5 Oblique Distance): 1968.5 ft (1 Hz)

Blind Zone: 3.3 ft

Measurement Accuracy:
3.3-9.8 feet: System Error <0.9 feet, Random Error <3.9 inches @1σ

Other Distances:
±(0.2+0.0015D) (Target distance in meters)
(@20% reflectivity)
Performance may degrade in rainy or foggy conditions.

Sensing

Sensing Type

Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft.

Video Transmission

Video Transmission System

DJI O4+ Enterprise

Live View Quality

720p/30fps, 1080p/30fps (with DJI RC Plus 2 Enterprise)
540p/30fps, 720p/30fps, 1080p/30fps (with DJI Dock 3 and DJI FlightHub 2)

Operating Frequency

2.400-2.4835 GHz
5.150-5.250 GHz (CE: 5.170-5.250 GHz)
5.725-5.850 GHz
* Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.

Max Transmission Distance (unobstructed, free of interference)

FCC: 15.5 mi
CE: 7.5 mi
SRRC: 7.5 mi
MIC: 7.5 kmi

Max Transmission Distance (with interference)

Strong interference (dense buildings, residential areas, etc.): 0.7-3.1 mi
Medium interference (suburban counties, city parks, etc.): 3.1-9.3 mi
Weak interference (open spaces, remote areas, etc.): 9.3-15.5 mi

* Data is tested under FCC standards in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance. In obstructed environments, it is recommended to install the D-RTK 3 Relay Fixed Deployment Version.

Max Download Speed

20 MB/s (with DJI Dock 3)
20 MB/s (with DJI RC Plus 2 Enterprise)

Latency (depending on environmental conditions and mobile device)

The video transmission latency from the aircraft to the dock is approximately 100 milliseconds (affected by the actual environmental conditions).
The video transmission latency from the dock to DJI FlightHub 2 is affected by the actual network conditions and the computer’s configuration.

Antenna

8 antennas, 2T4R

Others

DJI Cellular Dongle 2

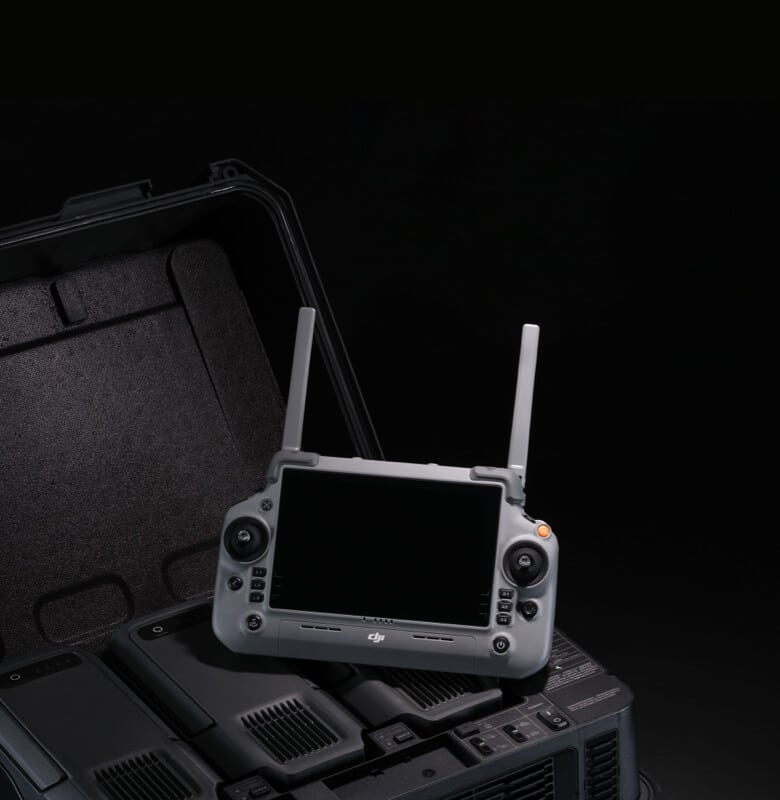

Remote Controller

Screen Resolution

1920×1200

Screen Size

7.02 inches

Brightness

1400 nit

Storage Capacity

Internal Storage (ROM): 128GB
Support microSD card to expand capacity

Operating Time

Built-in Battery: 3.8 hours
External Battery: 3.2 hours

External Battery

Supported

Output Port

HDMI port

Model

TKPL 2
