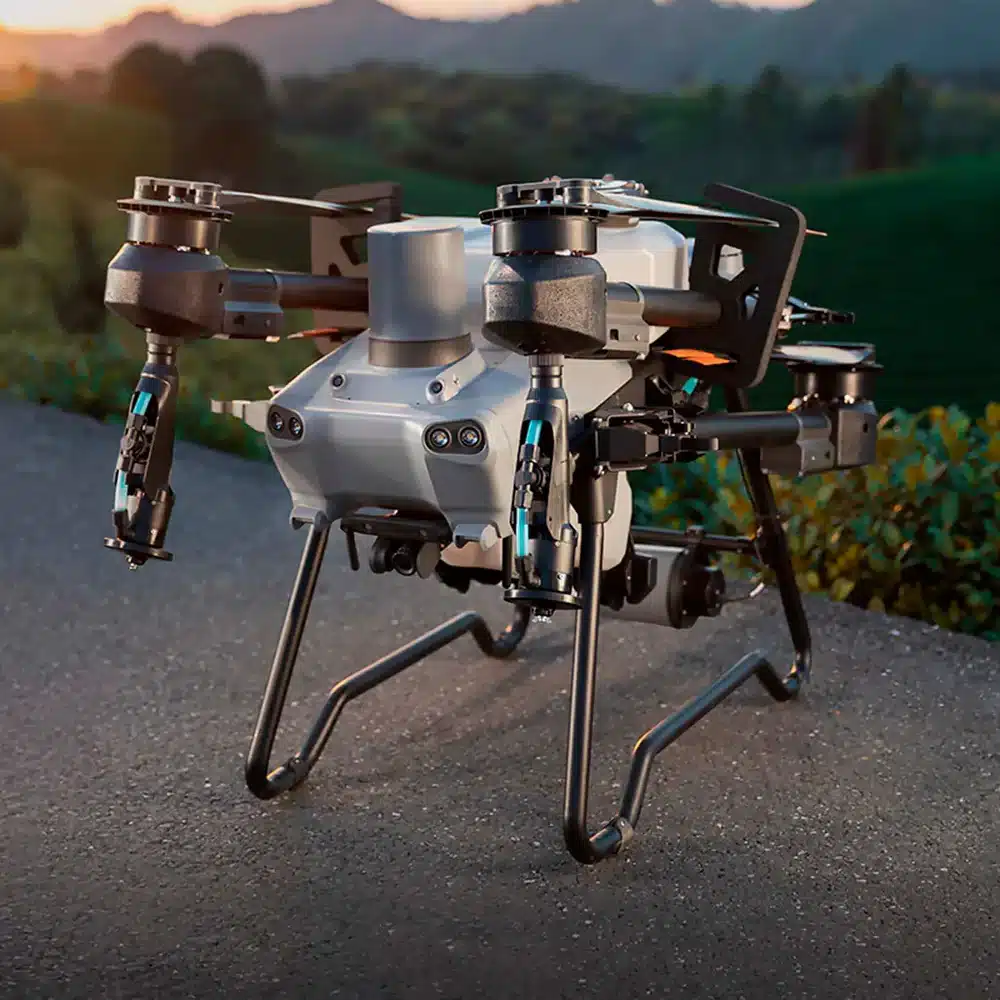

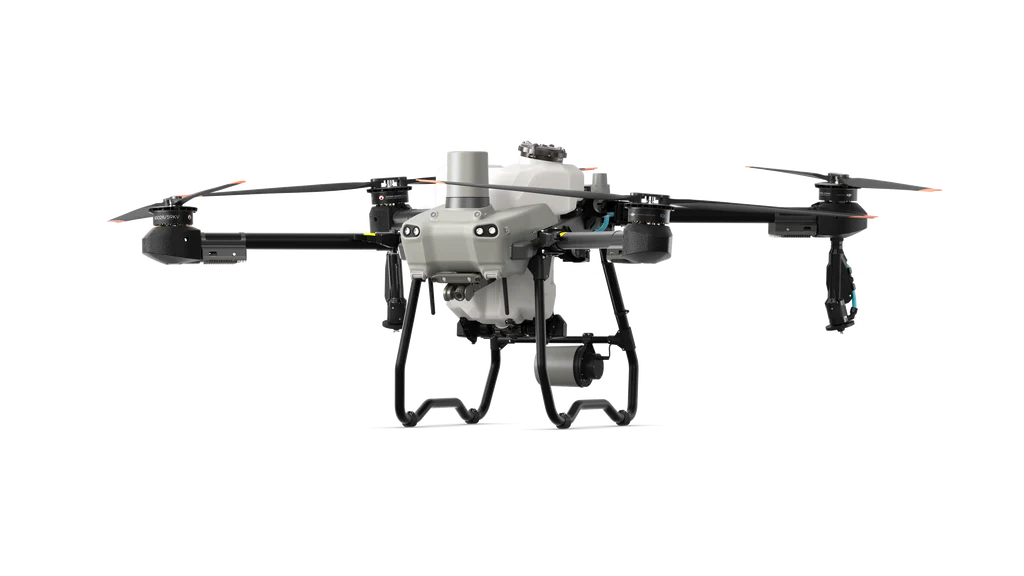

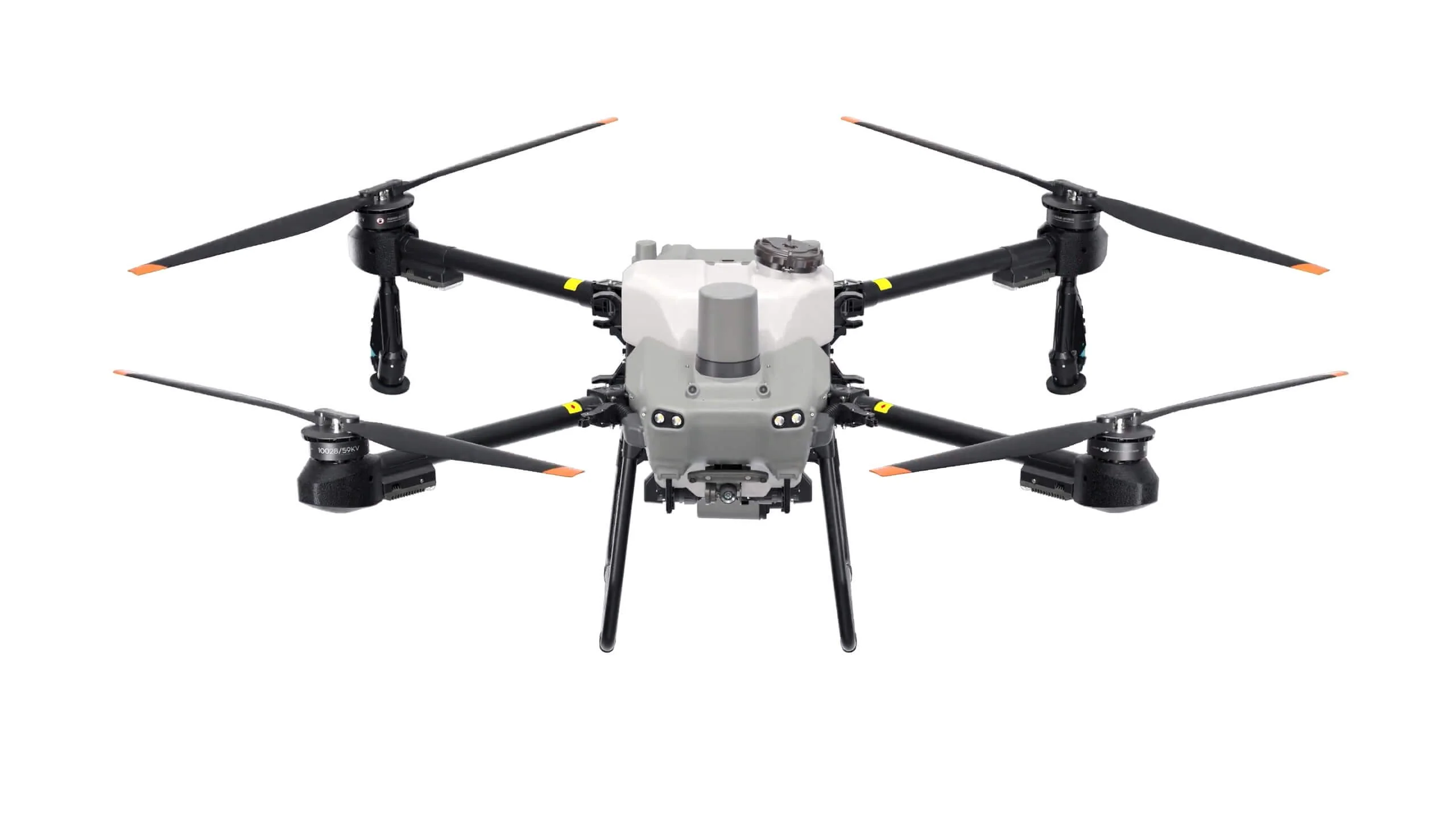

DJI Agras T25

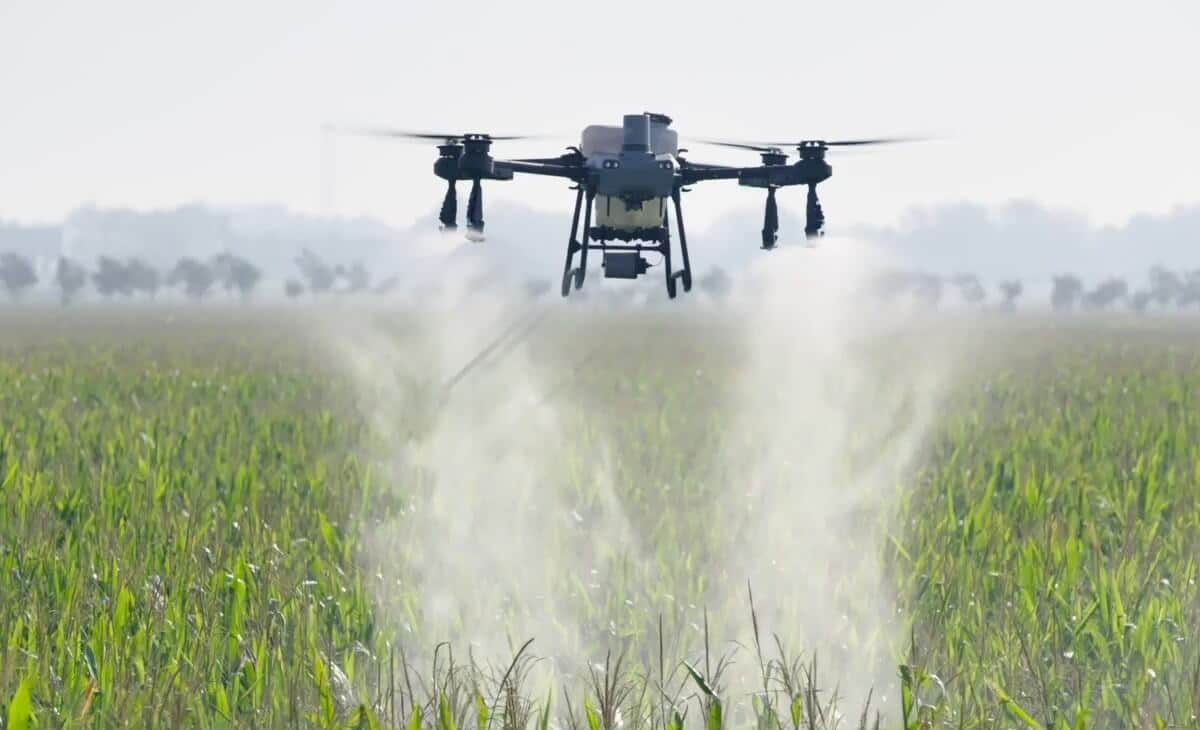

The DJI AGRAS T25 is a compact agricultural drone designed for efficient spraying and spreading tasks. Weighing just 25.4 kg (56 lbs) without the battery and 32 kg (70.5 lbs) with it, the T25 is lightweight and foldable, making it easy for a single operator to handle. The drone features a 20 L (5.3 gal) spray tank with a 20 kg (44 lbs) payload capacity and dual atomizing centrifugal sprinklers that deliver droplets ranging from 50–500 μm. It offers an effective spray width of 4–7 meters (13–23 feet) at a height of 3 meters (10 feet) above the crops. The T25’s magnetic drive impeller pumps provide a maximum flow rate of 16 L/min (4.2 gal/min) with two sprinklers, and up to 24 L/min (6.3 gal/min) with four sprinklers, ensuring uniform coverage.

For spreading applications, the T25 supports a 35 L (9.2 gal) spread tank with a 25 kg (55 lbs) payload capacity. The spreader features a spiral channel spinning disk and real-time weighing sensors to ensure uniform distribution and efficient operation. The drone is equipped with phased array radar systems for terrain-following capabilities up to 50° and obstacle avoidance with a sensing range of 1–50 meters (3–164 feet). The binocular vision system has a measurement range of 0.5–29 meters (1.6–95 feet) and an effective sensing speed of up to 10 m/s (22.4 mph). The T25’s remote controller, the RM700B, offers a 7 km (4.3 miles) transmission range and a 7.02-inch LCD touchscreen with a resolution of 1920×1200 pixels. The internal battery provides a runtime of 3 hours and 18 minutes, while the external battery offers an additional 2 hours and 42 minutes.
